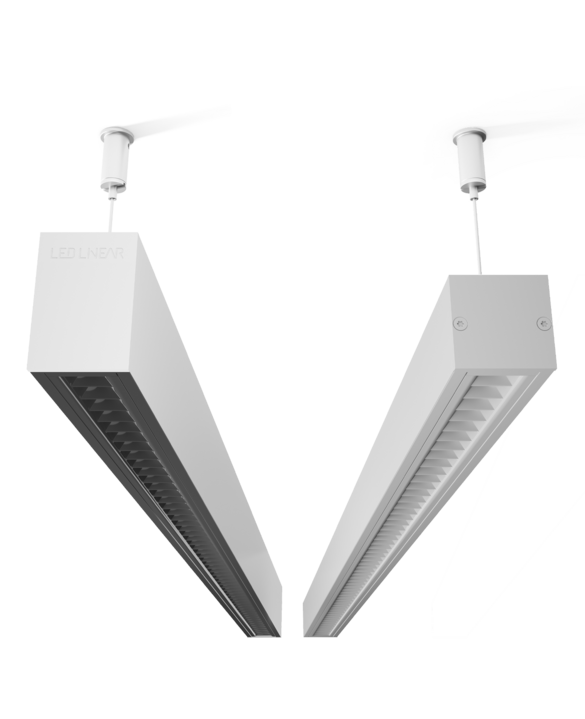

MARS ARCHITECTURAL Pendant

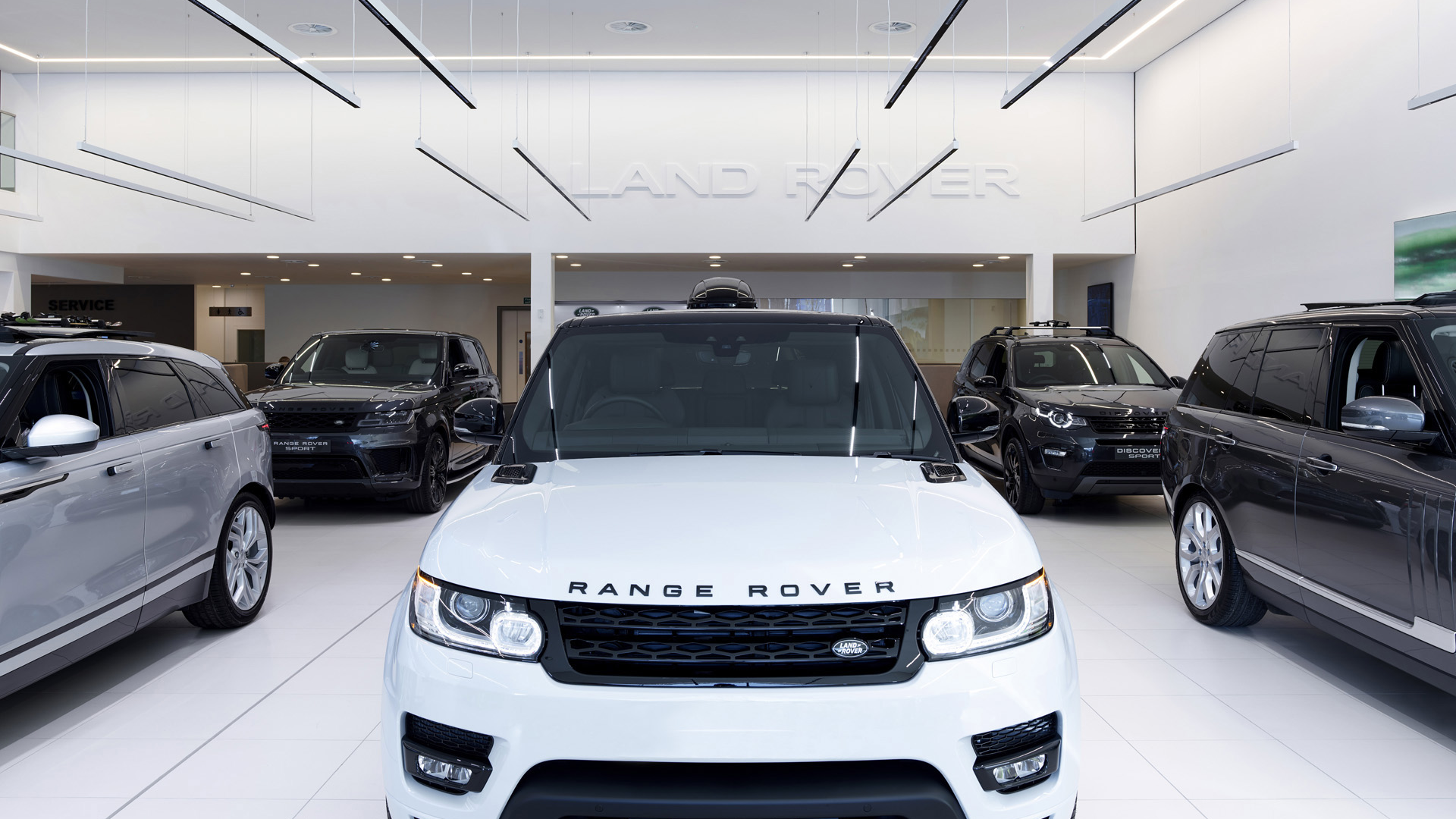

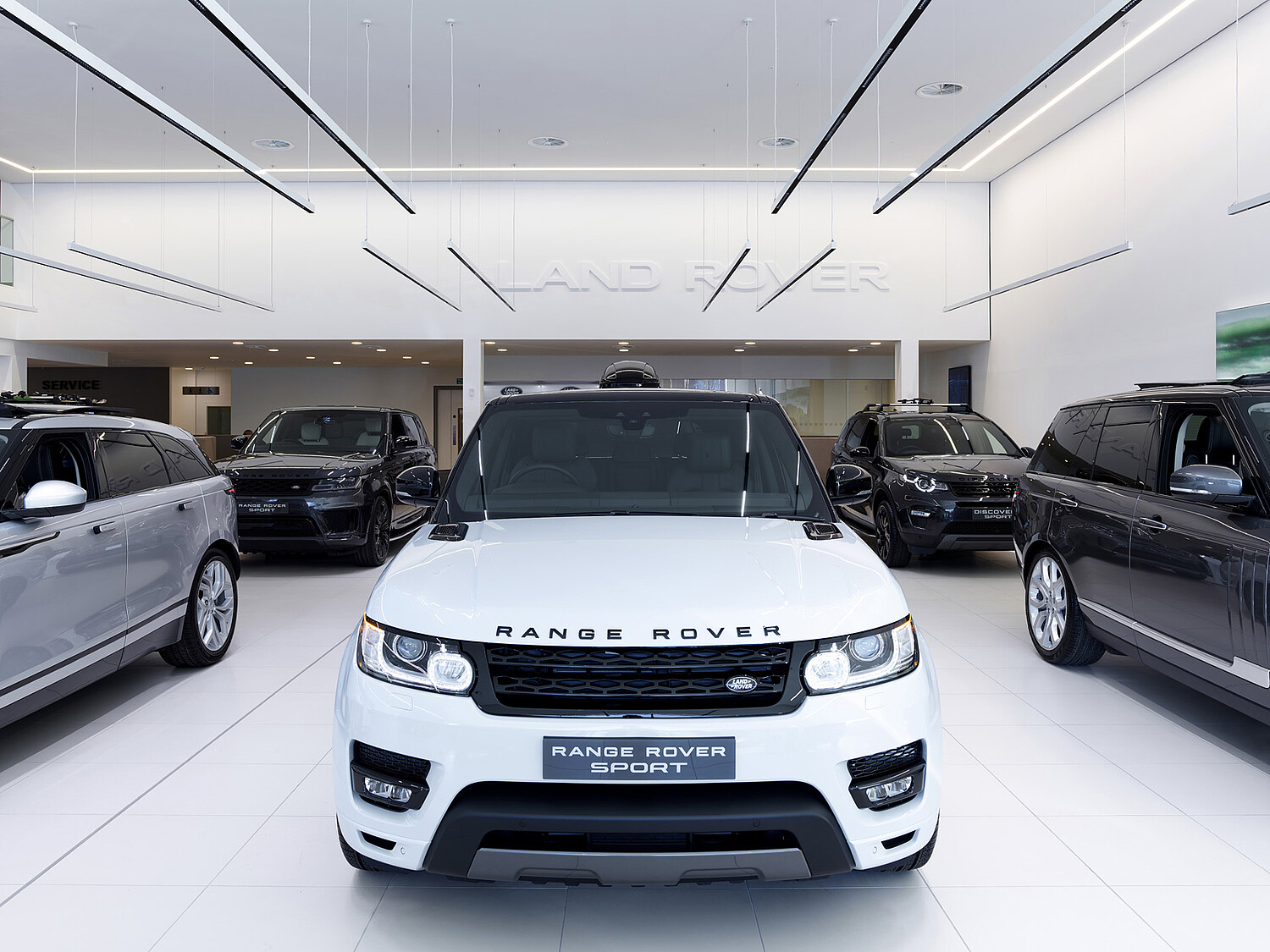

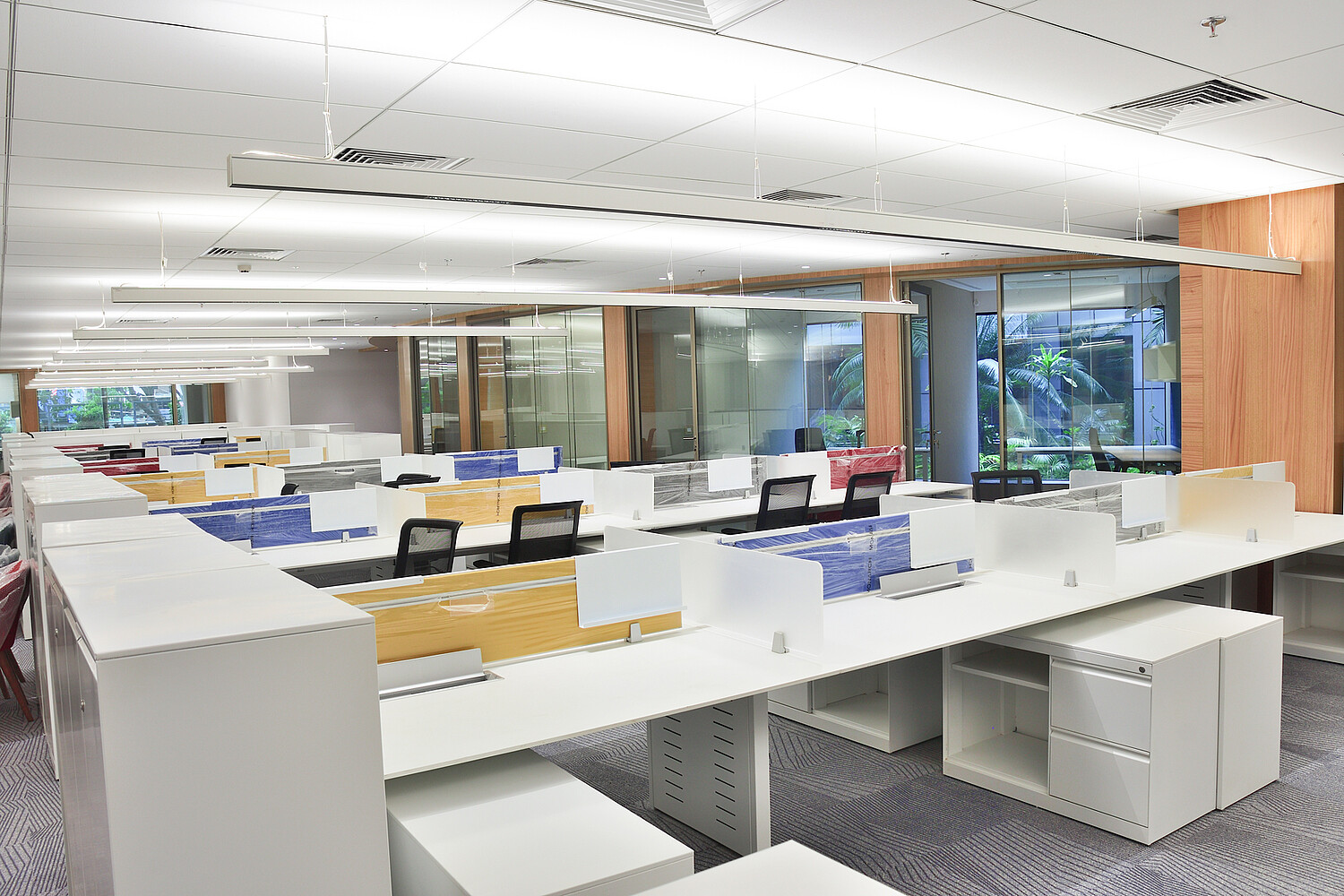

The timeless design of MARS ARCHITECTURAL blends in perfectly in offices but is also a valuable solution for education facilities, retail environments, public buildings and warehouses. The very wide range of options enables almost any general lighting application.
Excellent balance between design and functional lighting

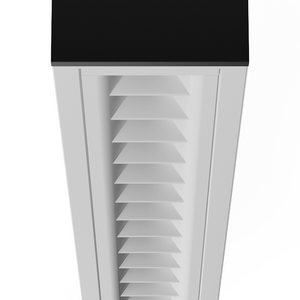

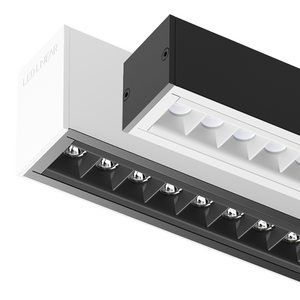

True Nano optics in four precise symmetrical beam angles plus a wallwasher provide near invisible light due to their antiglare louvers, resulting in an UGR as low as <8 (depending on type). An additional variant with an opal diffusor rounds out the options.
A multitude of options include several power levels and color temperatures plus options in tunable white and RGBW, as well as two form factors to choose from.

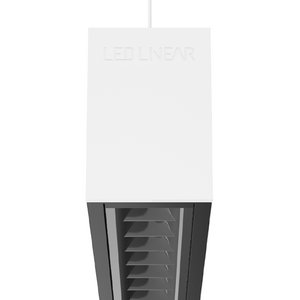

The pendant luminaires are available in three housing and two antiglare colors that can be freely combined. The type 62 also features magnetically fastened end caps to provide a clean finish.
MARS ARCHITECTURAL Pendant
Timeless design meets brightness and high light quality: the MARS ARCHITECTURAL system is a range of stylish linear solutions for general and task lighting, offering minimalist design language with maximum lighting as well as a multitude of options.
Mounting options of the MARS ARCHITECTURAL include recessed (with integrated or external drivers), surface or pendant installations. This innovative lighting system delivers up to 108 lm/W with a color rendering of CRI > 95. The optimum glare control through a black matte finish (black antiglare) enables a UGR glare rating < 13 and delivers high-quality and pleasant light. The MARS ARCHITECTURAL is available in White, IQ White and RGBW (opal only) in combination with different housing and antiglare finishes. The type 62 also features magnetically fastened end caps to provide a clean finish to the housing, further underlined by a transparent cable.
Electrical & Output Data
| Voltage | VDC (23 Vmin, 25 Vmax) |
|---|---|
| RGBW HD40 | |
| Power (W/m) | 40 |
| Efficacy (lm/W) | 47 |
| max. length (m) | 0.02 |
| CRI (up to) | 95 |
| RGBW HD40 | ||
|---|---|---|
| Color (λ) | lumen/m (lm/m)* | |
| Red (R) | 622 | 180 |
| Green (G) | 532 | 470 |
| Blue (B) | 466 | 120 |
| lumen/m (lm/m)* | ||
| W930 | 3,000 K | 1680 |
| W940 | 4,000 K | 1760 |
| Total @4,000K | 2370 | |
Mounting options
The required accessories for pendant mounting are included with the luminaire.
Pendant set for installations directly on the ceiling. 2 m wire is cutable on site.
