ULTIMA-P IP40

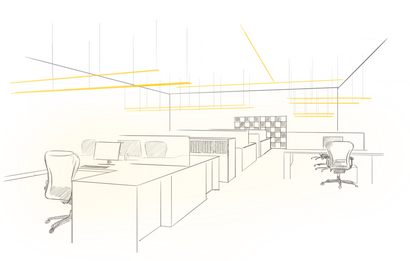

Ideal for pendant task lighting over workdesks, counters and smaller meeting room tables.
Minimal pendant luminaire
Extremely small for a pendant luminaire, especially when considering the built-in optical technology and an output of up to 1,840 lm/m.

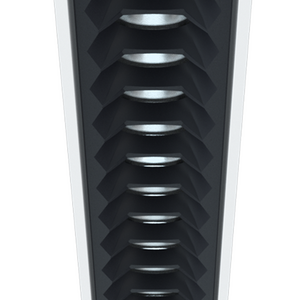

NanoRay 2.0 optics offer precise beam and glare control with minimal color over angle.

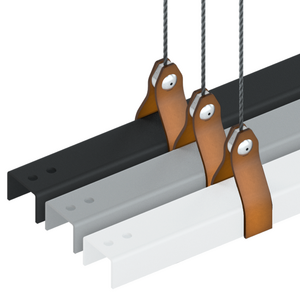

Standard includes multiple variations like 40° or 60°, Batwing and opal optics; 4 different color temperatures as well as 3 different housing/antiglare color combinations.
ULTIMA-P IP40

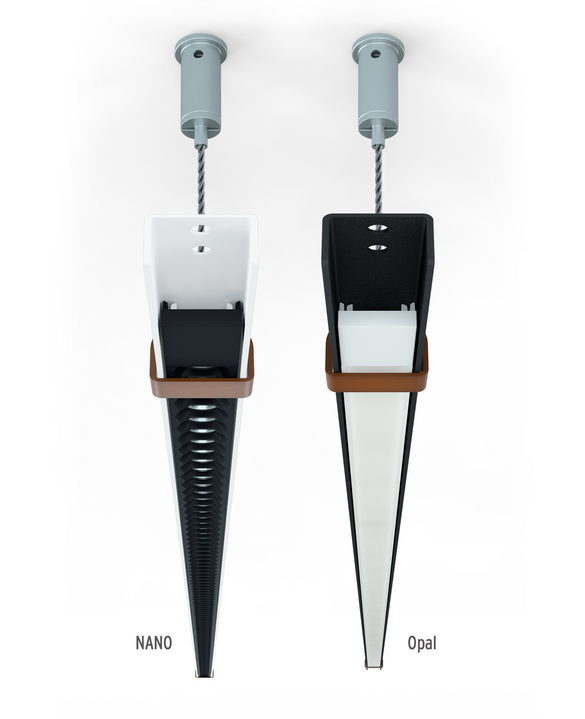

ULTIMA-P represents the perhaps most unobtrusive and minimal pendant luminaire, yet packing a powerful punch. Suitable for any task lighting with multiple options.
The ULTIMA family features three master technologies (CSP LEDs, antiglares and the second generation of nano optics) offering 7 different lighting effects from spot to asymmetric with an outstanding control of glare (UGR < 13) and color consistency integrated in less than 10 mm height.

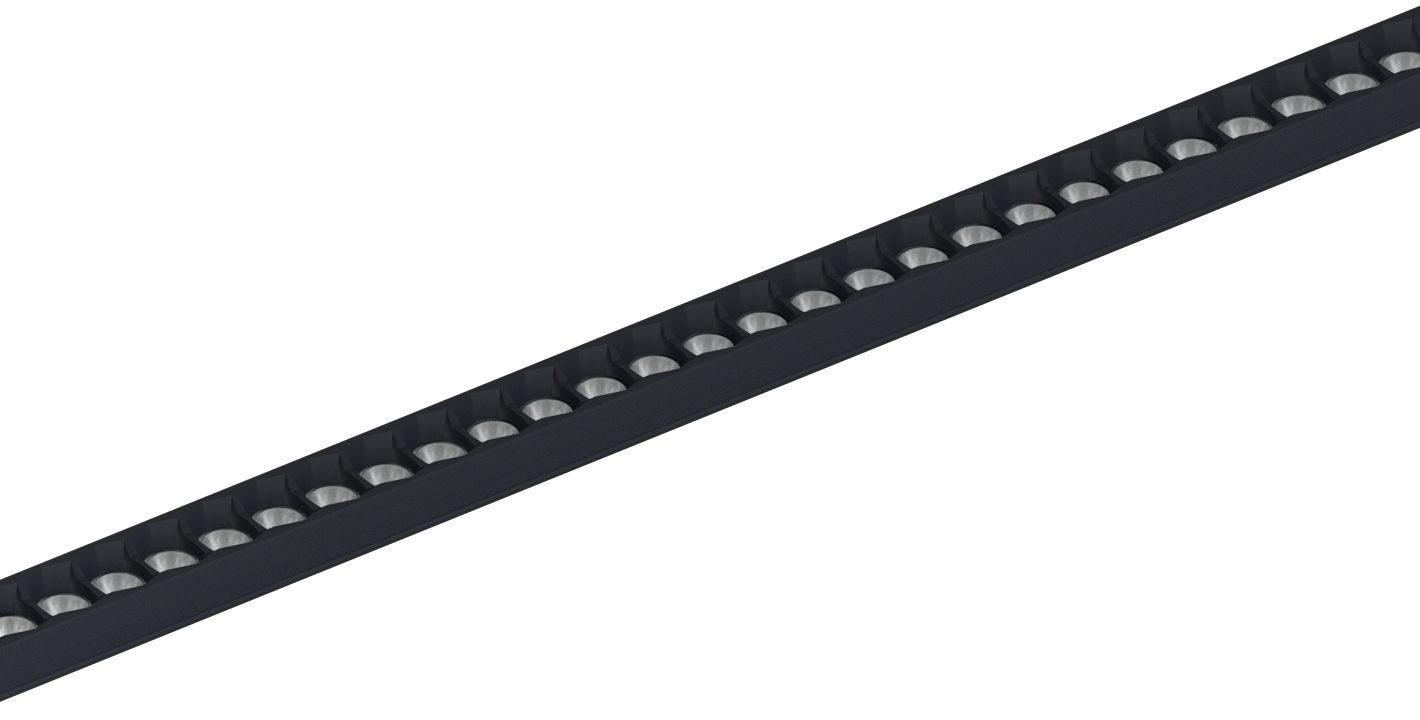

NanoRay 2.0 unleashing the capabilities of ULTIMA-P by providing crisp lighting effects from medium flood (40°) to wide flood (60°) and extra wide batwing optics integrated to a scale which has never been seen before.

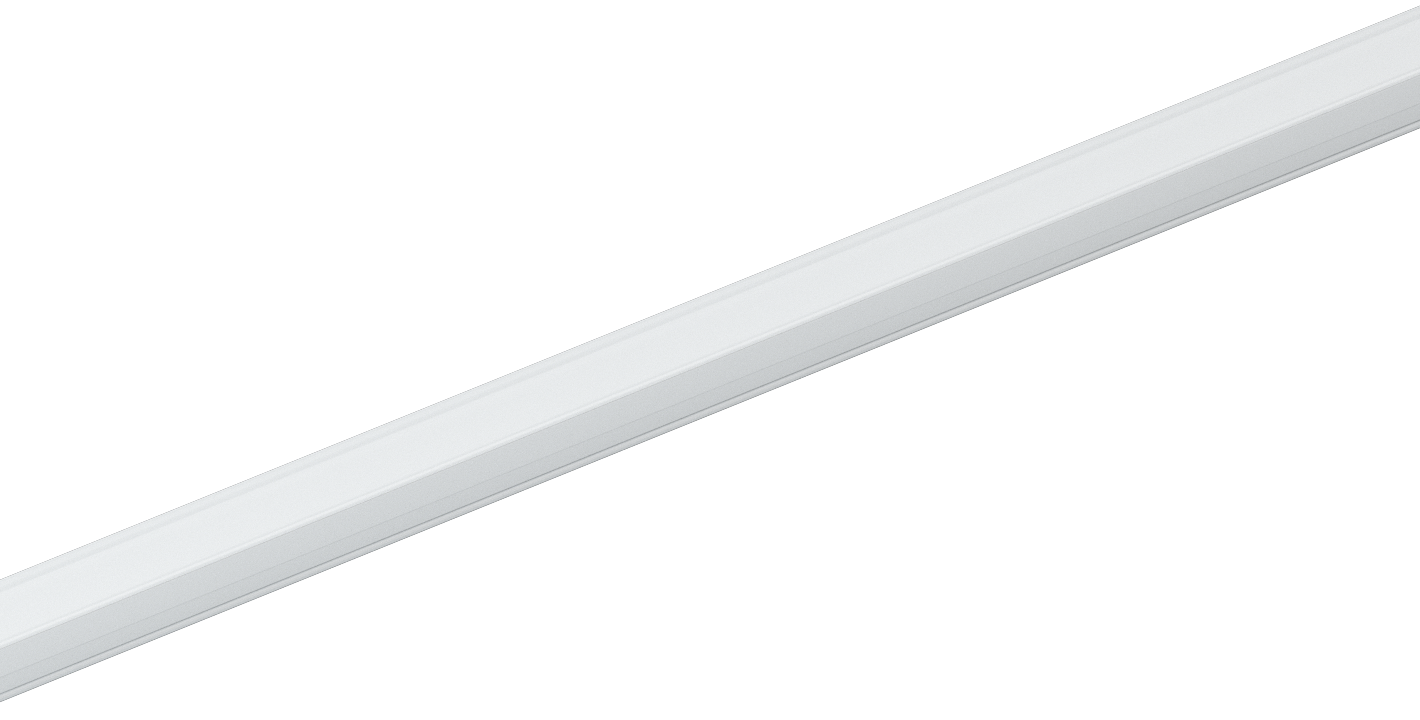

ULTIMA-P opal features a completely homogeneous light surface. Its wide flood beam spread is the right candidate for a gentle and pleasant atmosphere.
Electrical & Output Data
| Voltage | VDC (23 Vmin, 25 Vmax) | |
|---|---|---|
| 15 | 20 | |
| Power (W/m) | 15 | 20 |
| Efficacy (lm/W) | 115 | 107 |
| CRI (up to) | 95 | 95 |
| Color temperature | 15 | 20 | |
|---|---|---|---|
| Order Code | Delivered CCT | lumen/m (lm/m)* | |
| W927 | 2,700 K | 1400 | 1760 |
| W930 | 3,000 K | 1420 | 1780 |
| W935 | 3,500 K | 1440 | 1810 |
| W940 | 4,000 K | 1470 | 1840 |
Mounting options
Mounting option “C” in order code. No additional accessories are required for this mounting option.
Ceiling fasteners for false ceiling or concrete ceilings.
Mounting option “G” in order code. No additional accessories are required for this mounting option.
Grid ceiling clip for easy mounting on the cross struts of the ceiling.
Mechanically connect two adjacent luminaires.
