VarioLED™ Flex IP67

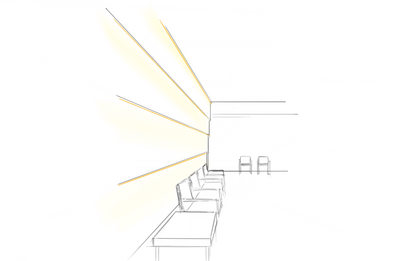

VarioLED™ Flex IP67 are flexible, linear LED light lines produced in customer specified individual lengths. Depending on the step measurement they are freely scalable and available in lengths of up to 10 m (with large pitch). For applications such as coves, contours, furniture, counters, stairways, etc.
High protection and amazing flexibility
High efficiency with up to 135 Lumen/Watt.
IP67 protection against water, salt water and UV radiation through a clear polyurethane encapsulation.

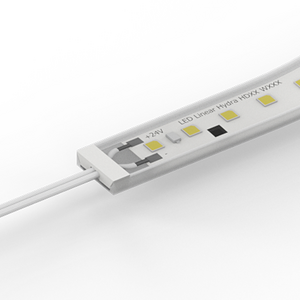

The lamps are delivered ready to plug in with IP67 mini connectors at both ends and can be easily installed with adhesive tape or plastic clips.
VarioLED™ Flex IP67
VarioLED™ Flex IP67 are flexible, linear LED light lines which are protected against environmental influences and can be produced in customer specified individual lengths. They are IP67 protected against water, salt water and UV radiation through a clear polyurethane encapsulation.
The utilized polyurethane features a 5 times higher chemical resistance and a 10 times lower water transmission compared to typical Silicones for LED applications in the relevant temperature range (–50°C to 80°C). Depending on the step measurement they are freely scalable and available in lengths of up to 10 m. The fixtures are delivered ready to plug in with IP67 mini connectors at both ends and can be easily installed with an adhesive tape or plastic clips. A white base profile with lateral fins and reflective surface guarantees high luminous flux. The product is available in the colors White and RGB. The small cross section, the minimum bending radius of only 30 mm and the high robustness allow use in virtually any application, such as coves, contours, furniture, organic forms, counters, stairways and backlighting.
Technical Specification
Lighting distribution curves
Dimensions
Electrical & Output Data
| VarioLED™ Flex RGB | LD15 | |||
|---|---|---|---|---|
| Power (W/m)A | 15 | |||
| max. efficacy (lm/W)A | 36 | |||
| max. length (m) | 4.02 | |||
| max. serial run length (m) | 4.0 | |||
| Temperature Tc-point (Tcmax)B | 70°C | |||
| max. ambient temp. (Tamax) | 40°C |
| Color code | Luminaire lumens/meter* (lm/m)A | ||||
|---|---|---|---|---|---|
| RGB Red (R) | 622 | 125 | |||
| RGB Green (G) | 532 | 335 | |||
| RGB Blue (B) | 466 | 80 | |||
| total | 540 | ||||
Mounting options
Clear plastic mounting clips. Use to mount the product on hard surfaces. Sold as set of 50 pieces.
Double sided 3M adhesive tape roll. Use to mount products on surfaces.
