VENUS family IP67
First linear flexible LED luminaire for outdoor architectural lighting with a perfectly homogeneous and dot-free light surface. The innovation brought by this 2 dimensions bendable light lines opened new doors in lighting design which were unreachable by any luminaires back then.
Flexible, dot-free design light line for appealing lighting accents
VENUS is a polyurethane encapsulated luminaire. Restistance and chemical stability against urban gases.
With an efficiency up to 76 lm/W, VENUS stands out as one of the most efficient light line available to date.
The various lumen output and a large panel of available CCTs turns VENUS into a modular lighting design tool-kit.
VENUS family IP67
The products of the VENUS family are opal encapsulated protected flexible LED design light lines with a cross section of 16 mm x 15 mm (Top View, bending direction vertically) or 10 mm x 20.5 mm (Side View, bending direction horizontally) and max. length of 5,000 mm.

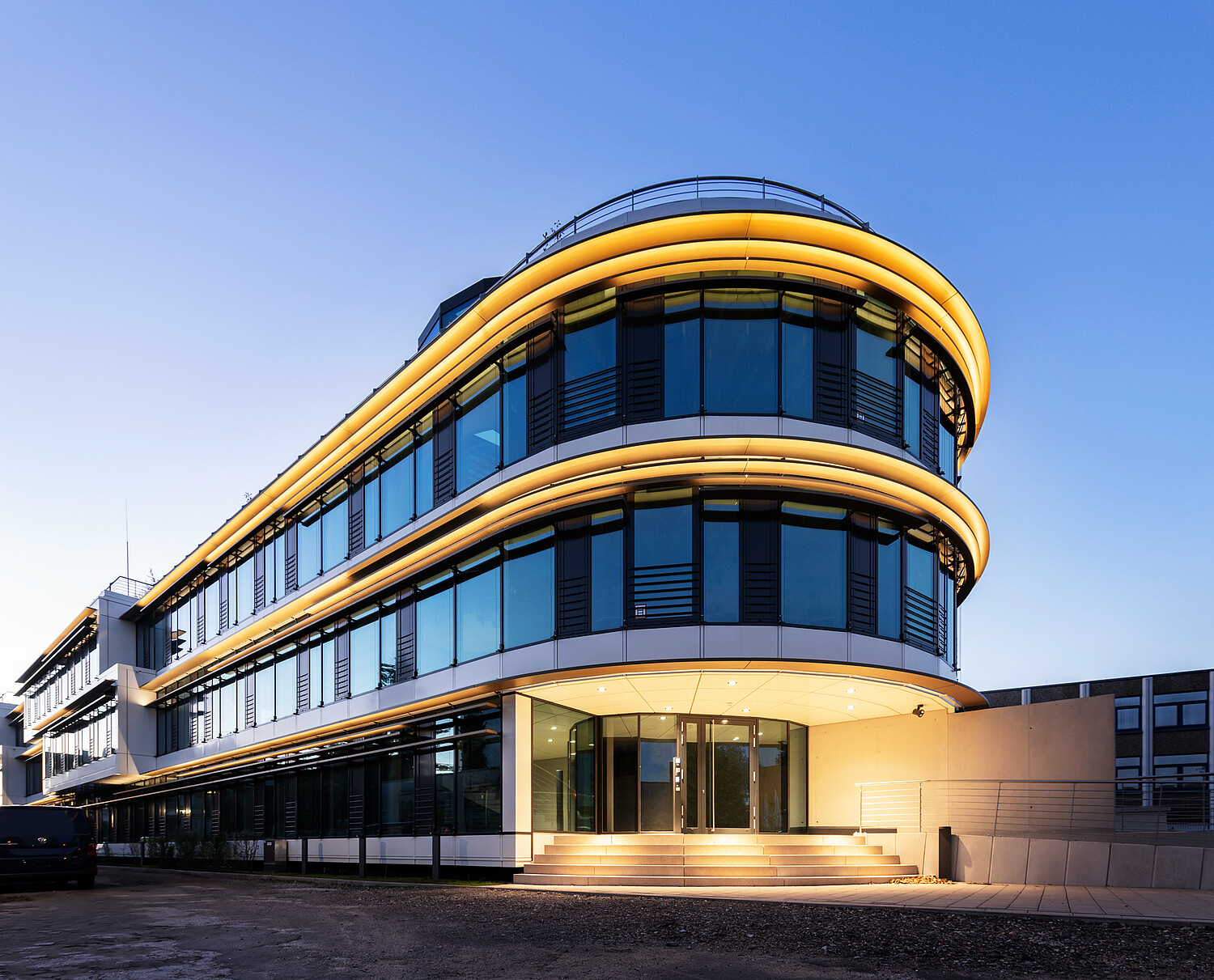

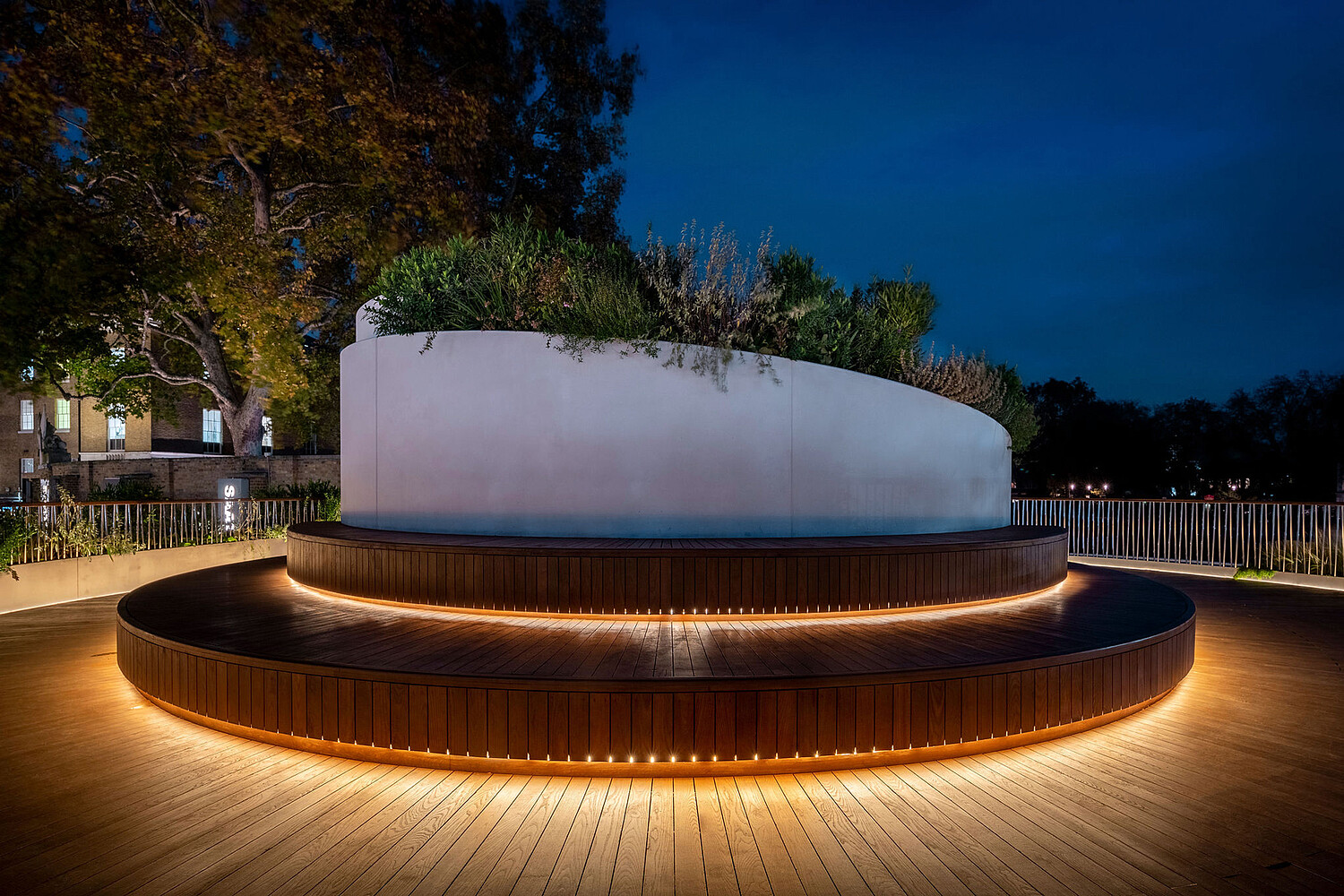

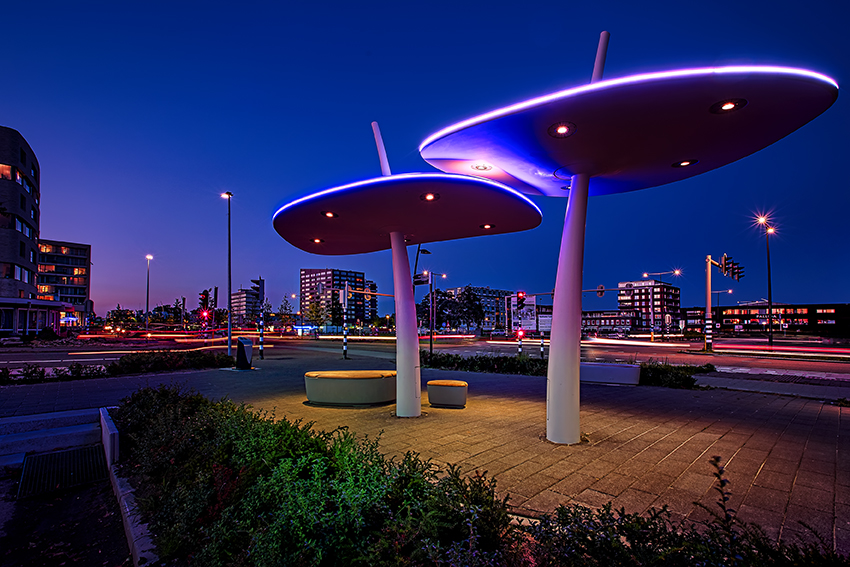

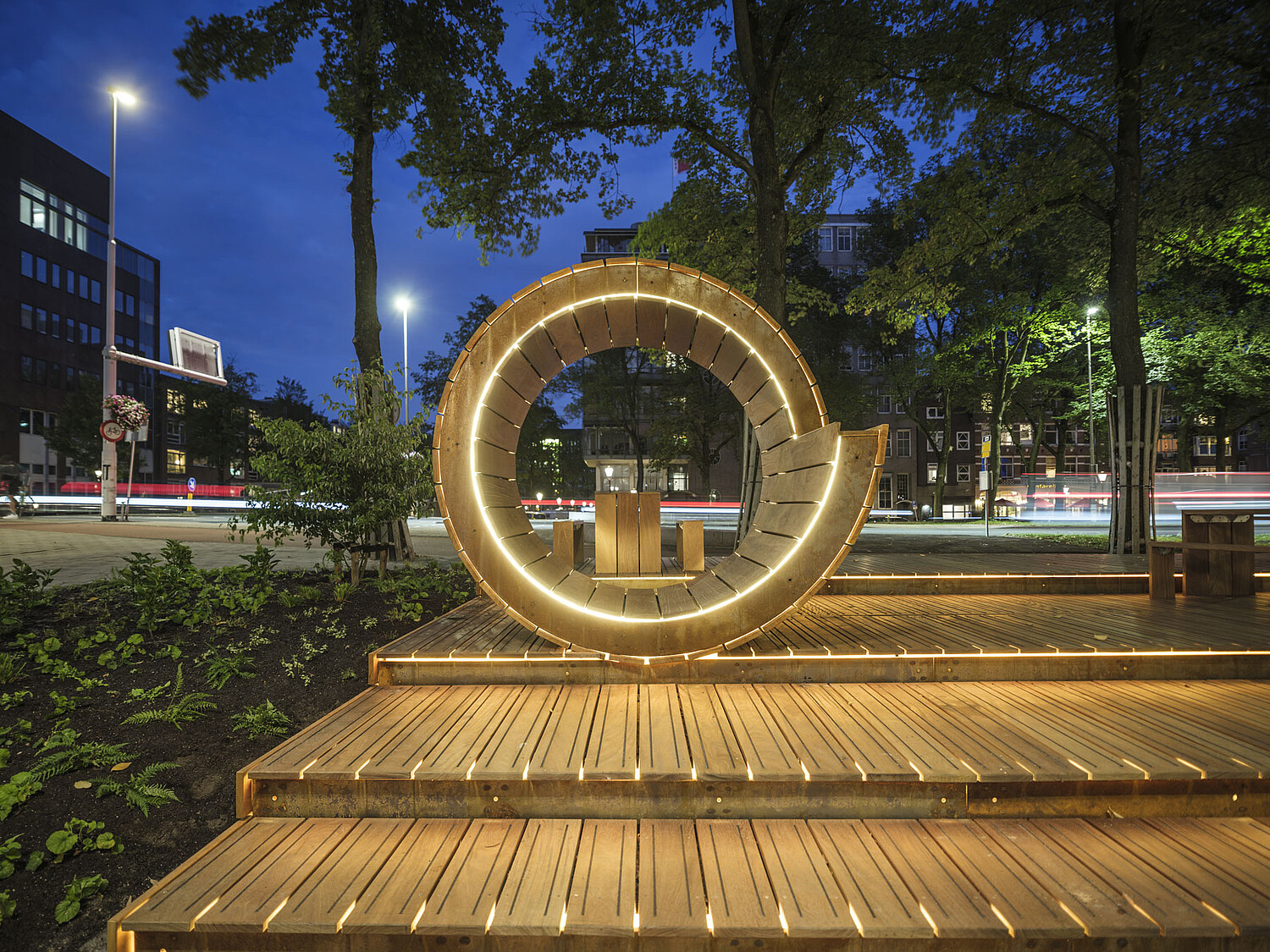

Depending on the version it can be delivered in lengths of multiples of 62.5 mm or 125 mm. Products of the VENUS family provide a lamp life time up to 60,000 hours, glare and dot free LED illumination, a luminous flux of 1.130 lumen/m and a color rendering (CRI) of up to 85. The product comes in different colour temperatures of white, RGB, Tunable White as well as red, green and blue on request. In short, a flexible LED light line with outstanding look and feel and technical lighting properties. VENUS can be used for various in- and outdoor applications from furniture design to facade illumination. Easy installation, high flexibility (bending radius of R = 15 cm) and a rugged design for harsh environments (e. g. resistant to saltwater, UV and solvents) are further outstanding product benefits. The utilized polyurethane features a 5 times higher chemical resistance and a 10 times lower water transmission compared to typical silicones for LED applications in the relevant temperature range (-50°C to 80°C). VENUS, a LED Linear™ lighting solution merging design and function.
Technical Specification
Lighting distribution curves
Dimensions
Electrical & Output Data
| Voltage | VDC (23 Vmin, 25 Vmax) |
|---|---|
| HD10 | |
| Power (W/m) | 10 |
| Efficacy (lm/W) | 18 |
| max. length (m) | 5.04 |
| max. serial run length (m) | 5.0 |
| HD10 | ||
|---|---|---|
| Color (λ) | lumen/m (lm/m)* | |
| RGB Red (R) | 622 | 40 |
| RGB Green (G) | 532 | 110 |
| RGB Blue (B) | 466 | 30 |
| Total | 180 | |
Mounting options
Robust aluminum extrusion for Top View, powder-coated in white. Use according to the mounting instruction.
Robust aluminum extrusion for Side View, powder-coated in white. Use according to the mounting instruction.
Robust aluminum extrusion for Top View, powder-coated in white. Use according to the mounting instruction.
Robust aluminum extrusion for Side View, powder-coated in white. Use according to the mounting instruction.
Robust aluminum extrusion for Top View, powder-coated in white. Use according to the mounting instruction.
Robust aluminum extrusion for Side View, powder-coated in white. Use according to the mounting instruction.
Robust aluminum extrusion for Top View, powder-coated in white. Use according to the mounting instruction.
Robust aluminum extrusion for Side View, powder-coated in white. Use according to the mounting instruction.
Stainless steel clip Top View for surface mount application. Use according to the mounting instruction.
Stainless steel clip Side View for surface mount application. Use according to the mounting instruction.
