XOOLUM IP67
XOOLUM is an exceptionally efficient design lamp, which offers enormous modularity and user-friendliness. Through the external converter, the light line retains its sleek shape.
The smallest and brightest lighting solutions for general illumination
High Lumen output up to 1,000 lm/m and efficien-cy of 45 lm/W in combination with minimalistic design (25.4 mm x 31 mm) makes XOOLUM an efficient product.
Polyurethane is utilized in XOOLUM to make it more resistant to impact from salt water UV-light and solvents.

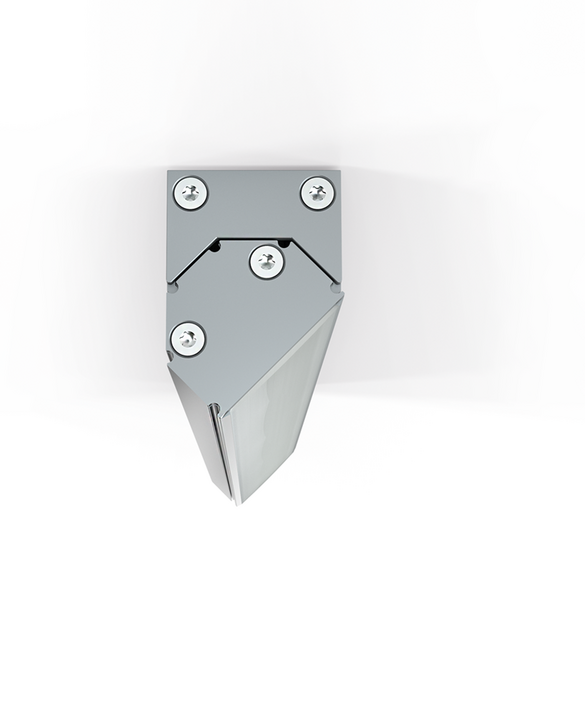

XOOLUM is a two in one fixture thanks to the possibility to mount it with an 45° angle. It can be surface mounted or as pendant fixture.
XOOLUM IP67
XOOLUM is an exceptionally efficient design luminaire, offering enormous modularity and user-friendliness. XOOLUM is created from natural anodized aluminum, resulting in a form that matches function in terms of simplicity.
Through the external converter, the light line retains its sleek shape. Whether indoor or outdoor, office, supermarket, warehouse, production facility or museum – the XOOLUM is appropriate for almost any lighting task through the use of seven specially developed optics and excellent LED strips with high color rendering. Available in silver or black profile color as surface-mounted or pendant version. The luminaire head of the multipart system profile is lockable at 45°, enabling more creative and technical lighting freedom.
XOOLUM was developed mainly for areas of general and industry lighting and is, thanks to the high efficacy, the ideal solution to realize a sophisticated, energy-saving lighting.
Technical Specification
Lighting distribution curves
Dimensions
Electrical & Output Data
| XOOLUM™ IQ White High Efficiency | HD12 | HD24 | ||
|---|---|---|---|---|
| Power (W/m)A | 12 | 24 | ||
| max. efficacy (lm/W)A | 33 | 35 | ||
| max. length (m) | 3.02 | 3.02 | ||
| max. serial run length (m) | 5.0 | 4.0 | ||
| CRI / R9 (up to) | 95 / 76 | 95 / 76 | ||
| Temperature Tc-point (Tcmax)B | 70°C | 70°C | ||
| max. ambient temp. (Tamax) | 40°C | 30°C |
| Color code / Color temperatureC | Luminaire lumens/meter* (lm/m)A | ||||
|---|---|---|---|---|---|
| W922 | 2,500 K | 180 | 365 | ||
| W940 | 5,300 K | 215 | 465 | ||
| total | 395 | 830 | |||
| * Silver colored profile | |||||
Mounting options
Pendant set for installations directly on the ceiling. 2 m wire is cutable on site.
Pendant set for installations directly on the ceiling. 2 m wire is cutable on site.
Pendant set with screws for installations directly on the ceiling. Recommended to use every 1 m.
Special designed mounting profile for surface-mounting options. Holes have to be drilled at site.
Adjustable clip for extra 45° tilt.
